Franklin Mechanical has been building microscope stands, stages, and accessories for over 35 years. From small manual stages all the way to fully motorized and programmable stages, in all sizes, Franklin has a solution. Need a reliable, reasonably priced microscope wafer loader? Franklin has it!

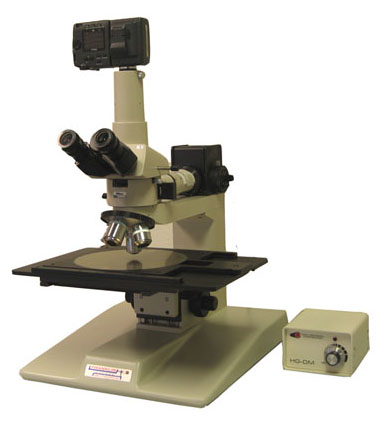

Franklin MCI  Microscope Stands

Franklin MCI Microscope Stands

Franklin MCI's line of microscope stands are used in many different industries. For example; biological, industrial, automotive, research, agricultural, medical, semi conductor electronics, inspection, measurement, etc. Whatever your needs are, Franklin MCI can configure to accommodate your specifications. Our specialty is taking your existing older optics on 4" stands and mounting them to our new 8-12 inch stands. A very cost effective way to upgrade to a larger capacity. Available options are motorized nose piece, transmitted lighting, motorized or manual stage, and motorized focus. We can mount a variety of optics including Nikon, Olympus, Meiji, Leitz, Zeiss and others.

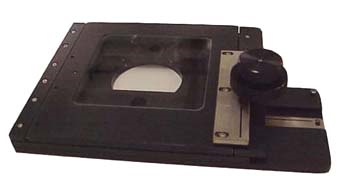

Franklin MCI  X-Y Stages
Model# 400FL-T

Franklin MCI X-Y Stages

Flat Mount Stages are used for many custom and standard applications. They can mount to any flat surface and most Diascopic Style Microscope stands. Available sizes are 4x4, 6x6, 8x8 and 12x12. Constructed from aluminum plate and finished in Black Anodize. Drive system features stainless steel gears with hard nickel plated gear racks. Stages are smooth operating, quality built and very reliable.

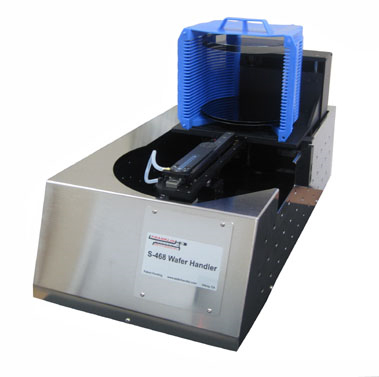

Franklin MCI  Wafer Loaders

Franklin MCI Wafer Loaders

Franklin MCI wafer loaders are designed for customers who want a simple, reliable, easy to maintain and easy to program loader. Consider the following: Built with Modular Components. We wanted our loaders to be very easy to repair. So we designed the main components to be easily removable. For instance if the robotic mechanism needs replacement/repair you remove 4 screws and unplug 3 small cables to take it out. Same thing goes for the Cassette elevator, remove 4 screws, unplug and remove/replace. You will not find a simpler loader to maintain. Reliability: Designed to move 1 million or more wafers. All mechanical motions are designed with recirculating ball bearing movements with hardened shafting/raceways and roller bearings. We test load/unload any where from 3,000 to 6,000 wafers on each loader during our testing procedures. Software: Our standard Loader Software runs on a PC with the XP operating system, which we supply with each Loader. It can be a laptop or a desktop depending on customer choice. Save money by using your own PC and we will supply the software on disc. For customers who want to write your own software we can supply an OCX example. Help with custom software and integration is available.

Franklin MCI Loader Model #S-468



This is just a small sample of the products offered by Franklin MCI.
Please contact your local TCG representative for more information.
